CUA-SWE: When Computer-Use Agents Meet Visual Software Engineering

Prince Zizhuang Wang1,*,†, Chenhao Liang2,*, Zelong Xu3,*, Aojie Yuan2,*, Xiaolin Zhou4,*,
Haiyue Zhang2, Yue Zhao2, Xiyang Hu4, Shuli Jiang5

1Carnegie Mellon University 2University of Southern California 3University of Wisconsin–Madison 4Arizona State University 5AWS Agentic AI

*Equal contribution †Project lead

CUA-SWE provides a benchmark and environment where coding agents need to repair the software by using it and visually inspecting it. Each of the 105 tasks (36 Web, 29 Game, 20 DevOps, 20 Mobile) gives the agent an editable project and the running application; deterministic, task-specific tests then judge the repaired software on a clean copy of the project. Adding computer use to coding raises task success for all eight models evaluated with and without it in every domain.

Web

Browser apps on real libraries. Layout and interaction bugs.

Fabric.jsMapLibreECharts

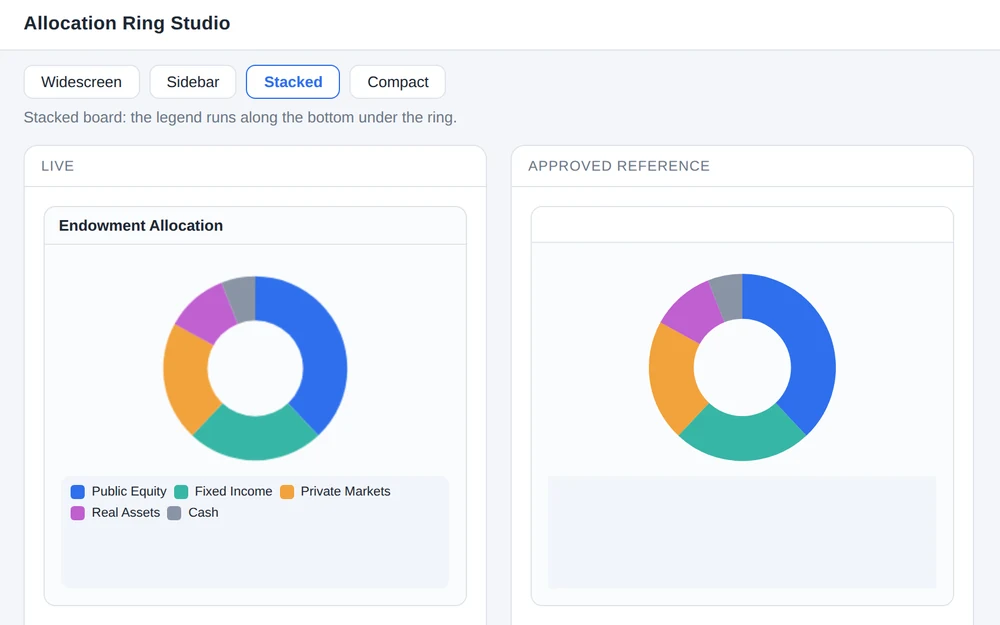

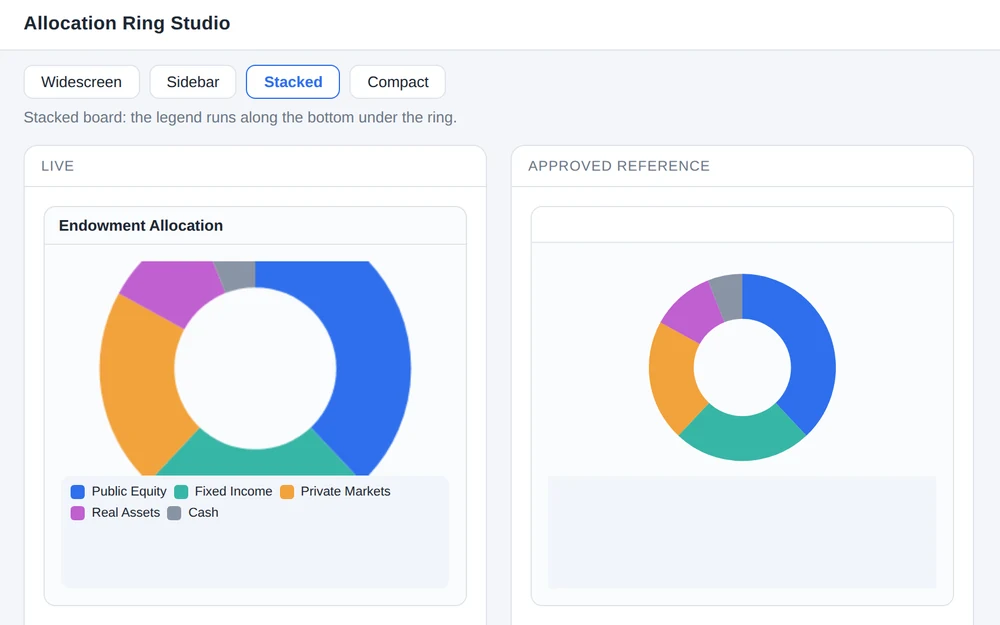

Allocation Ring Studio before the repair: the live ring chart overflows its card Allocation Ring Studio after the reference repair: the ring fits its card

Allocation Ring Studio. The ring chart overflows its card in the Stacked layout.The ring fits its card in every layout.

Game

Open-source browser games. Timing, physics and state bugs that show only in play.

Captain CallistoHextris2048

Captain Callisto before the repair: one pickup moves the cargo counter from 0 of 2 to 2 of 2 Captain Callisto after the reference repair: one pickup moves the cargo counter to 1 of 2

Captain Callisto. Picking up one item counts as two: the cargo counter jumps to 2/2.One item counts once: the cargo counter reads 1/2.

DevOps

Consoles for traces, alerts, logs and metrics. Fix the config or pipeline behind them.

PrometheusOpenTelemetry

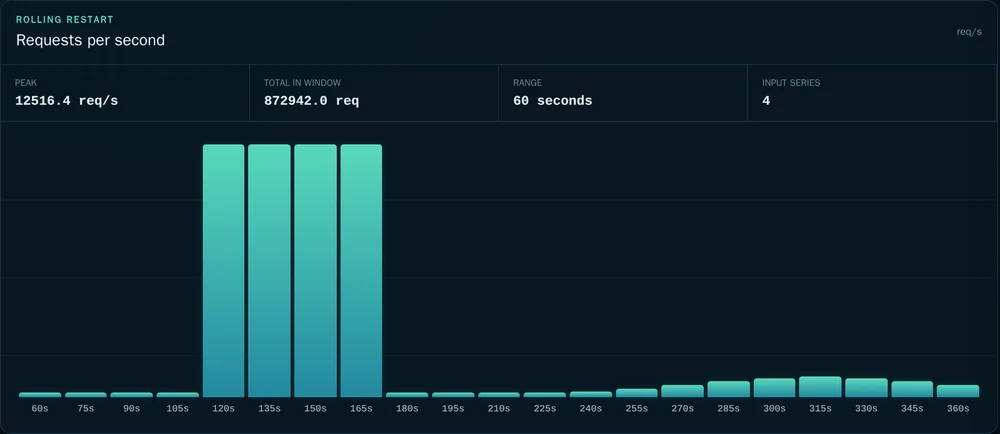

Counter Order Console before the repair: a rolling restart renders as a 12,516 requests-per-second spike Counter Order Console after the reference repair: the false spike is gone and the real burst remains

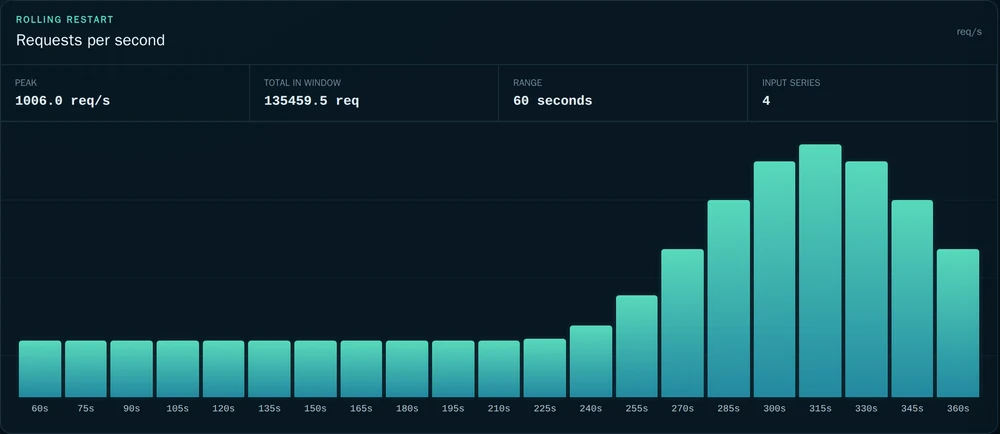

Counter Order Console. A rolling restart shows up as a 12,516 req/s traffic spike.The false spike is gone; the real burst later on remains.

Mobile

Phone apps that import drawings and plans. Make the app agree with them.

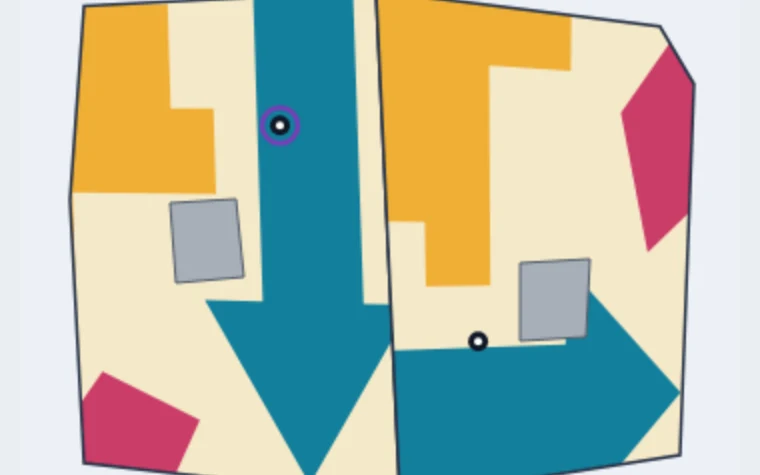

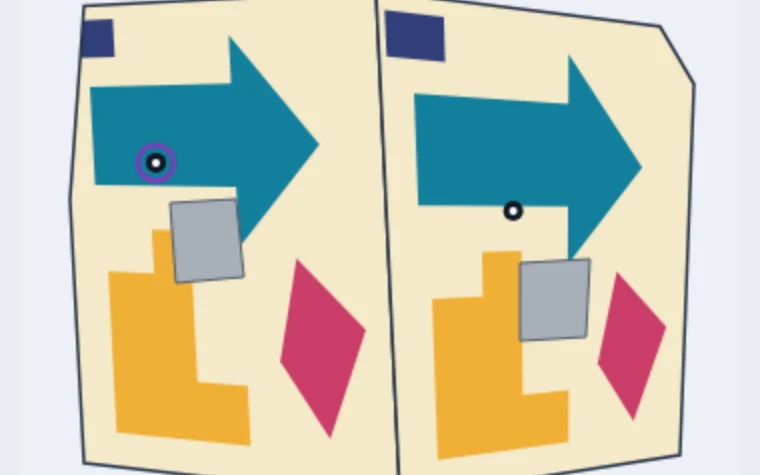

Mural Desk before the repair: the artwork is projected onto the wall plan in the wrong orientation Mural Desk after the reference repair: the artwork is aligned to the wall plan

Mural Desk. The artwork is projected onto the wall plan the wrong way.The artwork lines up with the wall plan.

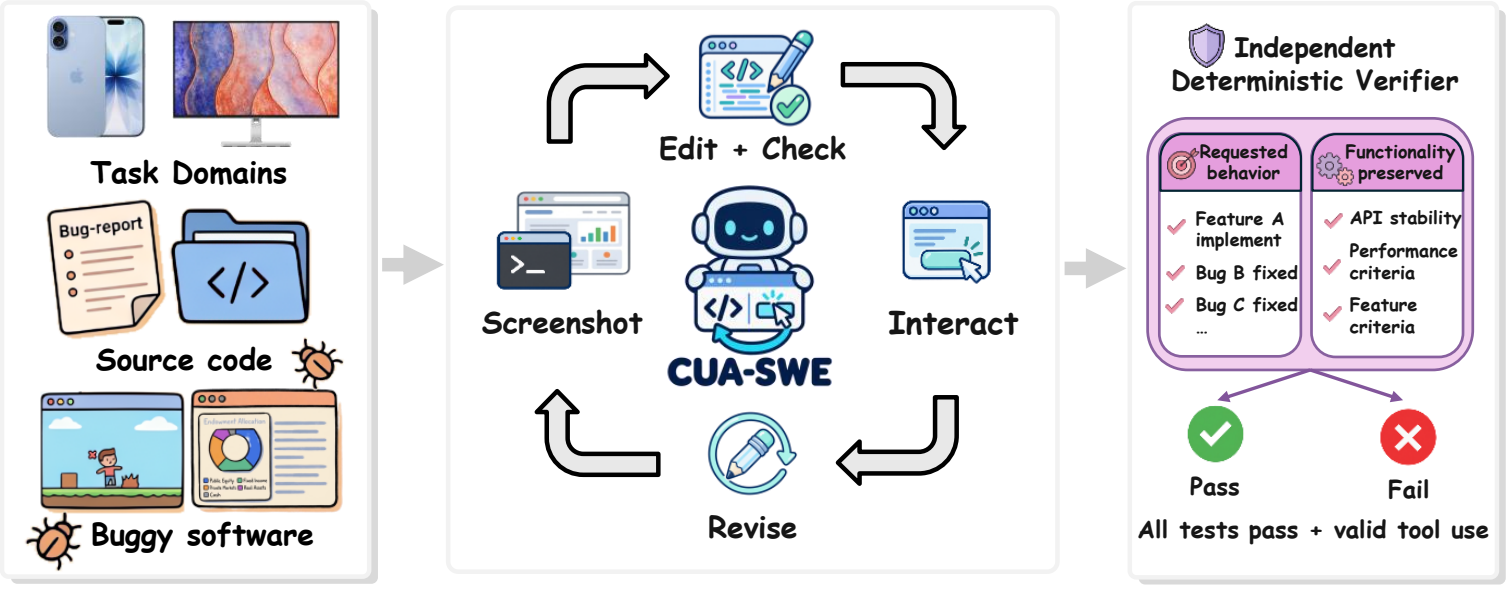

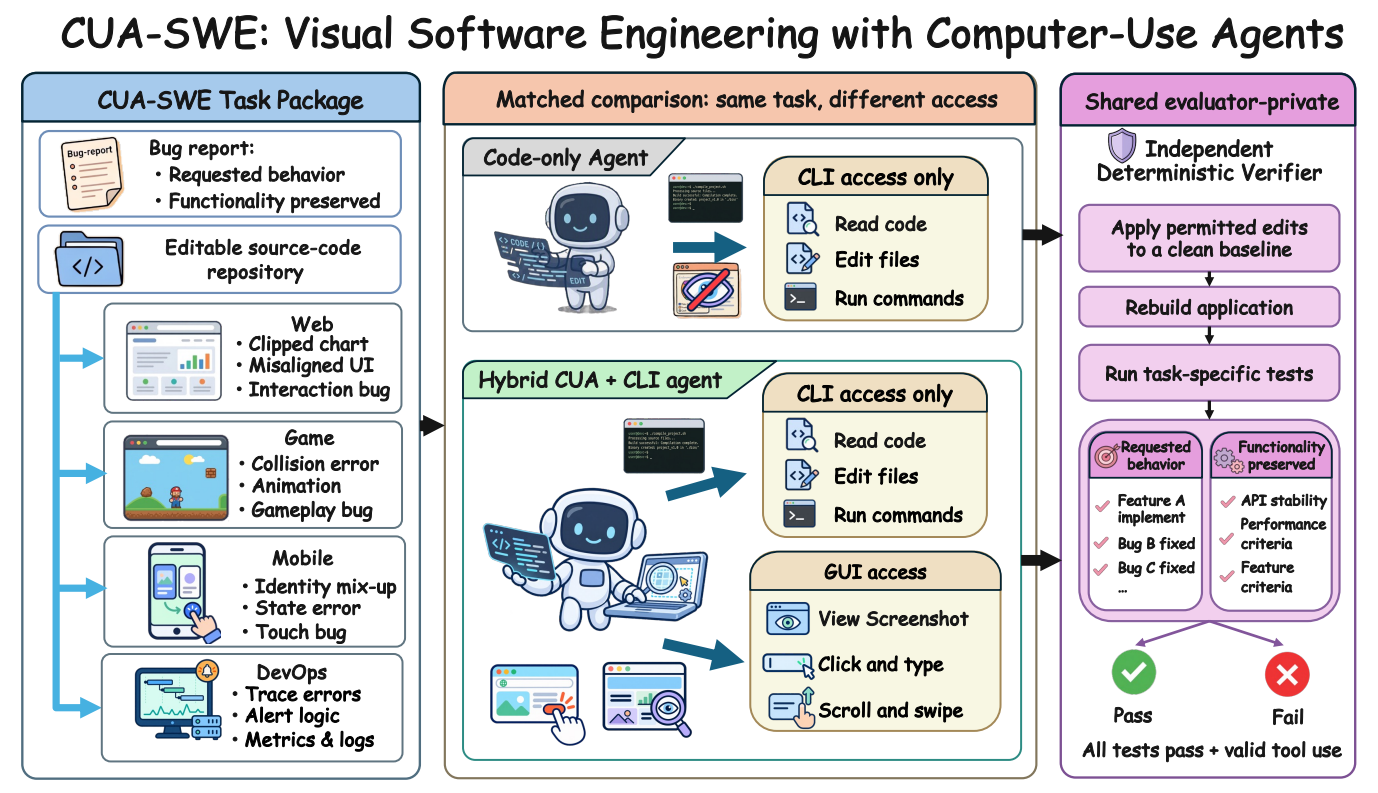

The CUA-SWE development and evaluation pipeline: task package, matched comparison of a code-only agent and a hybrid computer-use agent, and the shared evaluator-private deterministic verifier
How a task is run and judged. A task package gives the agent a bug report and an editable repository. The Code-only agent reads code, edits files and runs commands; the Hybrid agent additionally views screenshots, clicks, types and scrolls in the running application. The same evaluator-private verifier applies the permitted edits to a clean baseline, rebuilds the application and runs the task-specific tests. Figure 2 in the paper.

Results

Task success (%) on a single attempt per task, model and condition. Code-only uses the coding interface: read and edit source, run commands. Hybrid adds computer use: screenshots of the running application and mouse and keyboard actions. Both conditions share the same tasks, budgets and hidden tests, so the gap isolates what visual feedback and interaction contribute.

Lighter bar: Code-only Solid bar: Hybrid (computer use + coding) +pp Red label: Hybrid gain in percentage points One hue per model: GPT, Claude, Grok, agent systems

a Overall: four-domain mean for the eight frontier models evaluated under both conditions in every domain

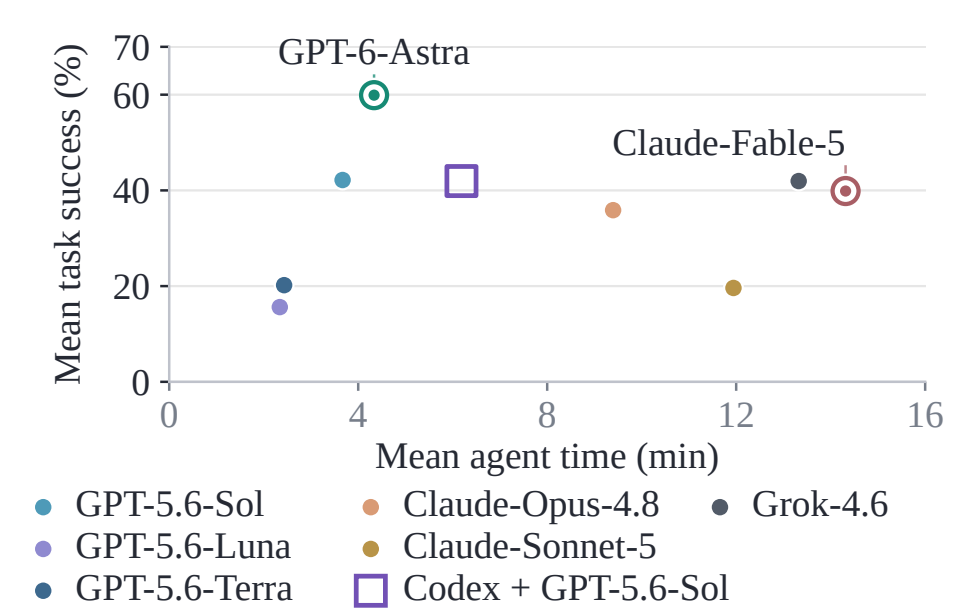

c Success and development time: mean Hybrid task success against mean agent time, nine models and systems
Mean task success against mean agent time in minutes for nine models and systems; GPT-6 Astra is highest at about 4 minutes
b By domain: Code-only and Hybrid for every evaluated model and agent system

Panel a weights the four domains equally and matches the right panel of Figure 1 in the paper; Opus 5 is omitted because its Mobile evaluation is deferred. Panel c is Figure 6a of the paper (circles: frontier models; open square: Codex). Codex and Claude Code are evaluated as complete agent systems in the Hybrid condition only. Each domain retains its original scoring rules: Web success also requires the required visual evidence; DevOps and Mobile exclude infrastructure errors and count genuine agent failures. Table 4 in the paper reports a three-attempt Hybrid evaluation of GPT-6 Astra, GPT-5.6 Sol and Fable 5.

Table 1 in the paper: single-attempt task success (%) for every model, domain and condition

Column maxima are in bold. Hover a cell for the number of solved tasks.

Examples

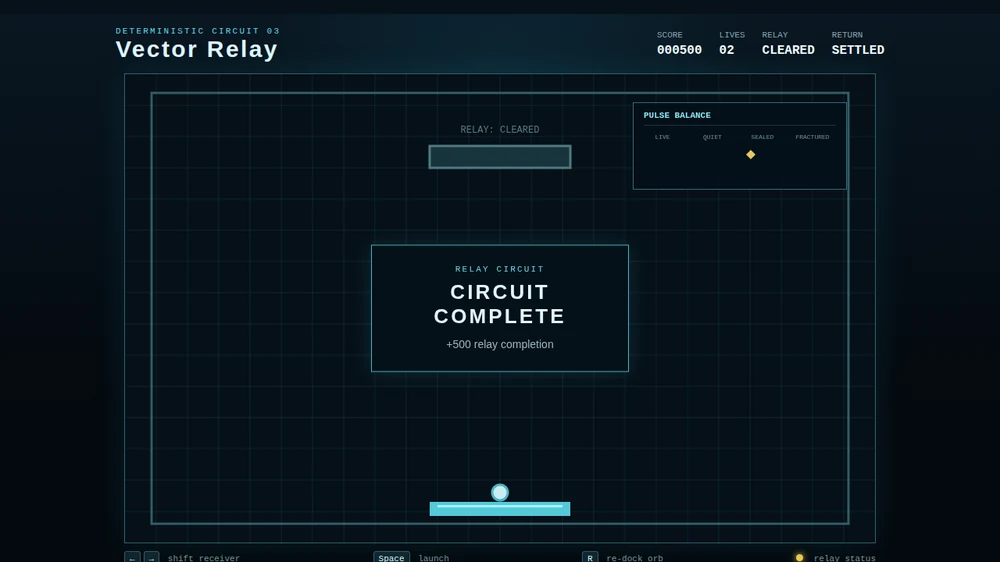

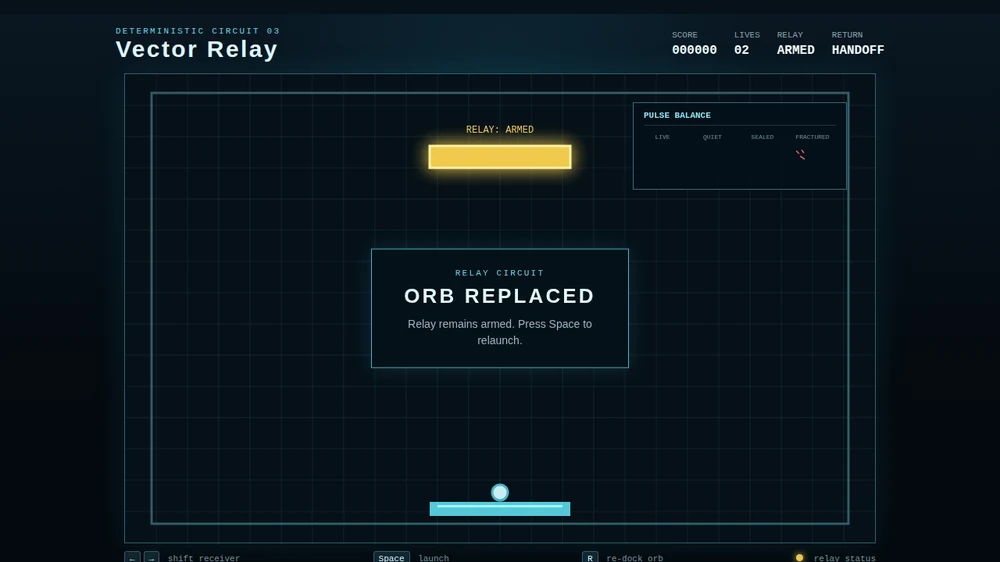

Three recorded runs, one per tab. Fabric.js is GPT-6 Astra’s scored Web attempt and Minesweeper a GPT-5.6 Sol run, both replayed as they happened; Vector Relay follows GPT-5.6 Sol step by step, with its edits and the verifier’s result.

Tasks

Every task starts from a verified bug in a working application and specifies the failure to fix, the behavior to implement and the existing functionality to preserve. Related variants share application code and test different interactions or configurations.

Web 36 tasks, 20 applications

Bugs in visual layout, geometry and interaction state. The applications use Fabric.js (9 tasks), MapLibre (7), React Spectrum, JupyterLab, Quill, ECharts and other open-source libraries, or implement business workflows such as account recovery, tax rounding and warehouse cutoffs.

Example instructionMake the account recovery page display the channel selected by the live identity risk policy for the account being viewed, including ACC-731, while preserving the recovery decision trace.

Game 29 tasks, 12 games

Bugs in motion, timing and state transitions in browser games, among them 2048, Flappy Bird, Minesweeper, Hextris and Captain Callisto. Tests set initial states, apply inputs and restart with fixed seeds.

Example instructionThe deterministic Level 3 benchmark build contains a gameplay regression. Play the pulse lane and compare the start, release, and restart of several short jetpack bursts.

DevOps 20 tasks, 10 fault types

Service consoles in which a displayed observation traces back to configuration or processing logic: rate before aggregation, alert inhibition, log severity, SLO rollups, tail sampling and trace clock skew, on Prometheus, Alertmanager, Jaeger and OpenTelemetry code.

Example instructionAfter the collector rollout, failed operations are missing from the log workbench’s severe view while a routine event appears as an error. Investigate the live records and receiver fleet, then repair severity classification.

Mobile 20 tasks, 12 applications

Mobile-web applications, run in Chromium at 400×800, whose displayed behavior is tied to application state and specified in part by imported drawings or documents: nine Gantt wall-chart variants and eleven other applications such as Mural Desk, Foldnote, Pass wallet and Campus Pocket.

Example instructionFoldnote is a mobile web packaging-proof review mockup. Review markers no longer stay correctly placed and oriented when switching between Flat sheet and Individual panel.

Where the requirements are specified

Tasks differ in where their requirements are specified; the paper calls this the specification basis. In source-specified tasks (42), the instruction and readable project code define the target behavior; running the application supports diagnosis and checking. In application-material-dependent tasks (63, material-dependent for short), part of the behavior is specified only through application materials such as an imported drawing, a displayed service contract or a graphical reference card, which the code-only interface does not expose. Both groups require implementing the behavior and verifying the resulting software.

Two example tasks

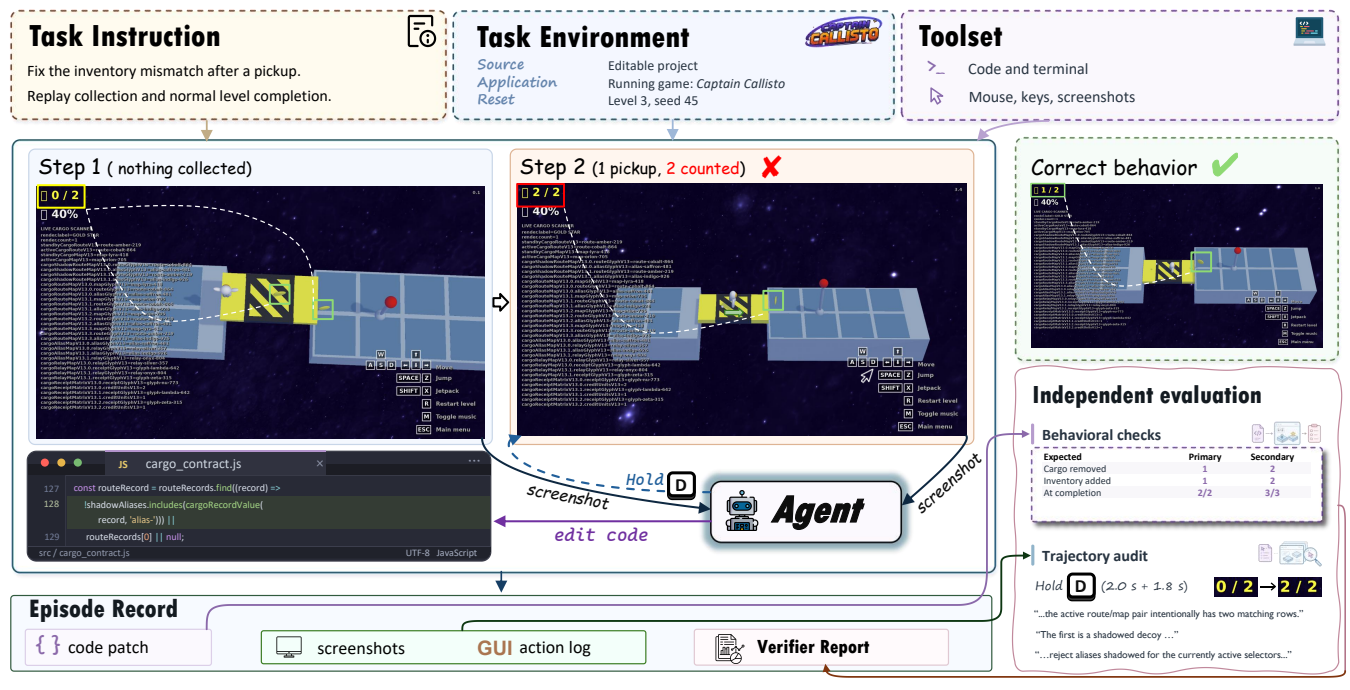

Game example: repairing inventory updates in Captain Callisto
Game. Captain Callisto: one pickup changes the inventory from 0/2 to 2/2. The agent reproduces the fault with game controls and screenshots and edits the inventory logic; independent checks test collection and level completion under two replay scenarios. Figure 3 in the paper.

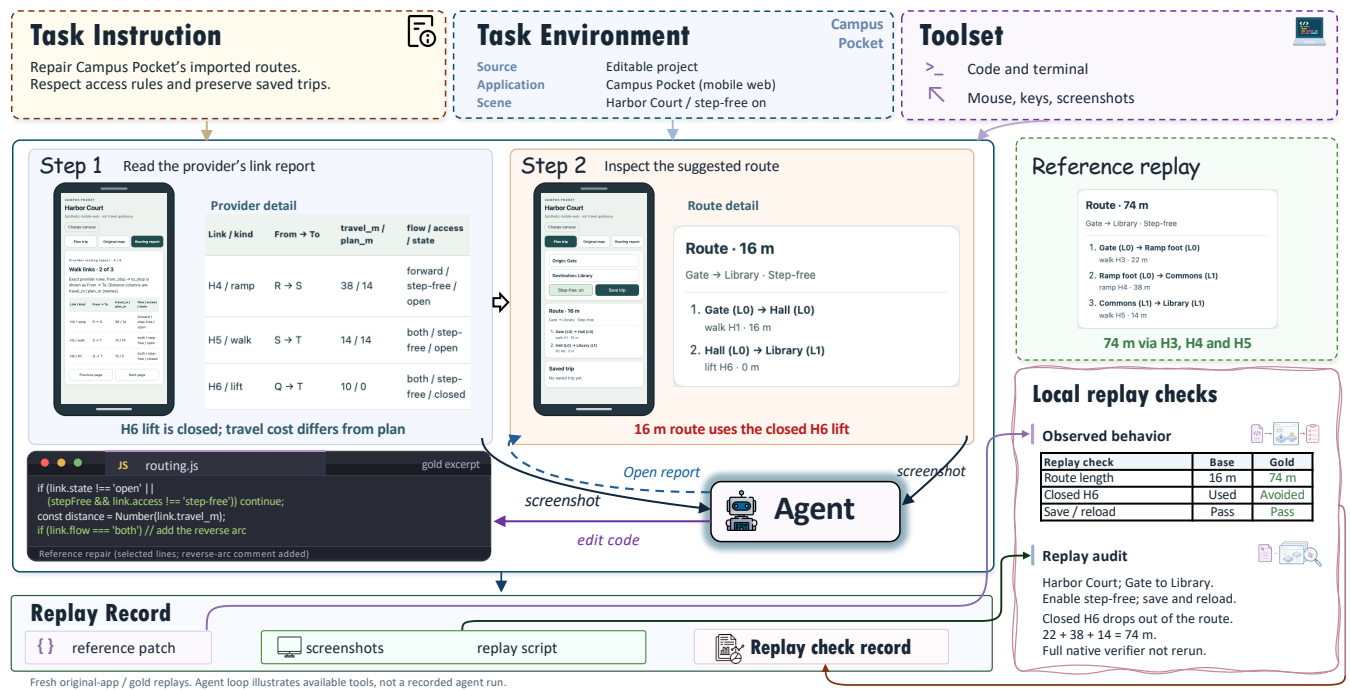

Mobile example: repairing imported routes in Campus Pocket
Mobile. Campus Pocket: the provider report identifies a closed lift and the travel costs used to build a step-free route; the faulty route uses the closed H6 lift, the repaired one avoids it. Figure 4 in the paper.

Browse all 105 tasks with their original instructions, budgets and tests

Analysis

Where the gains come from

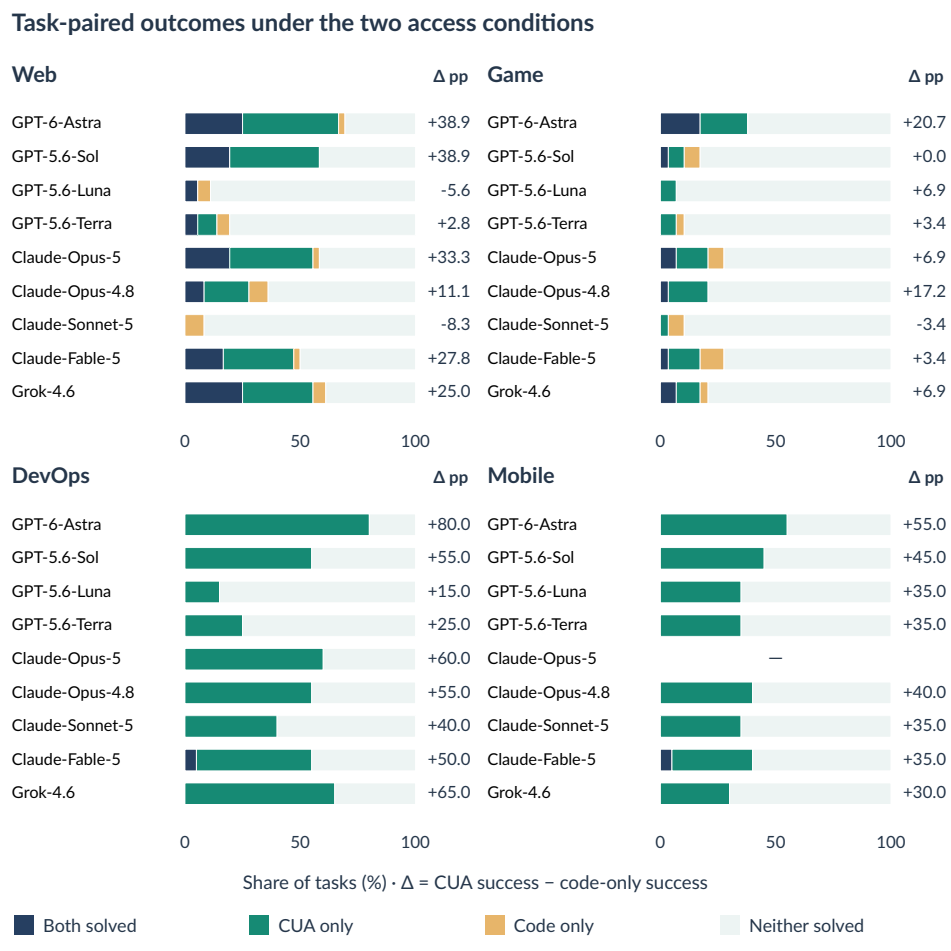

Task-paired contribution of computer use for nine API models across four domains
Task-paired outcomes under the two access conditions. Each bar partitions a model's matched tasks by the joint Code-only and Hybrid outcome; the value at right is the Hybrid gain in percentage points: tasks solved only with computer use minus tasks solved only with code. Figure 20 in the paper.

The gains concentrate on material-dependent tasks, while source-specified subsets have near-zero domain-average changes and substantial variation across models.

Success by where the requirements are specified (%), averaged over the eight frontier models. Table 9 in the paper.
DomainRequirementsTasksCode-onlyHybridΔ pp
WebSource-specified2223.923.9+0.0
WebMaterial-dependent148.950.9+42.0
GameSource-specified2010.610.0−0.6
GameMaterial-dependent92.826.4+23.6
DevOpsMaterial-dependent200.648.8+48.1
MobileMaterial-dependent200.639.4+38.8

In material-dependent tasks the agent must recover requirements from drawings or displayed behavior, implement them and preserve the surrounding workflow. Source-level execution tests the implementation; application observations supply requirements and feedback that those executions alone may not expose. The same figure also shows the limits: a few Web tasks are solved only with code, and most Game tasks remain unsolved under both conditions.

How agents turn runtime observations into correct changes

Four released GPT-6 Astra attempts, one per domain, as reviewed in the paper (Figures 28 to 31). Each figure shows what the agent observed, the source change that followed and the evaluator's verdict. Click a figure to enlarge it.

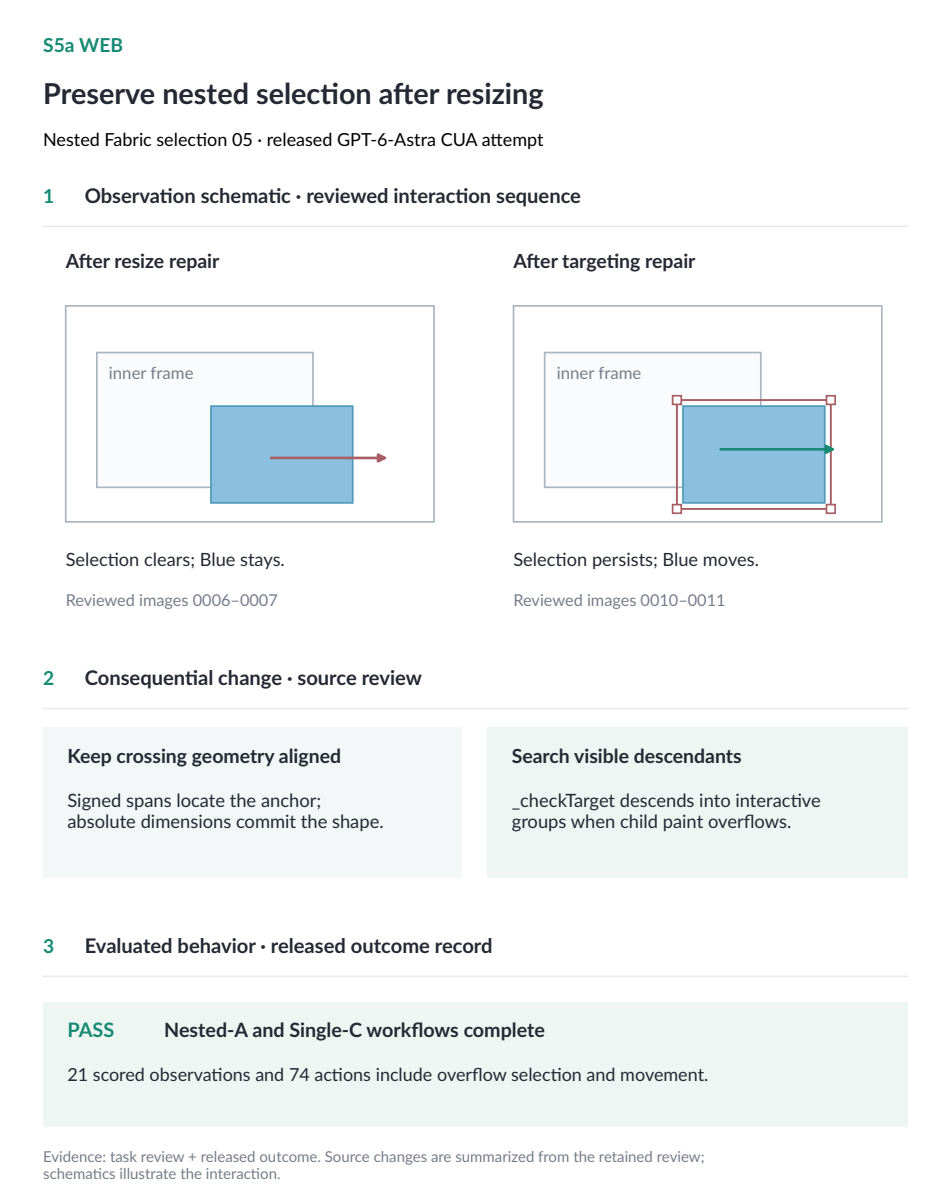

Web case: preserve nested selection after resizing
Fabric.js editor, the run shown step by step under Examples. After repairing resizing, the agent drags the object beyond its containing frame; when selection is lost it extends hit testing to selectable descendants and repeats the interaction. GPT-5.6 Sol and Claude Opus 5 repair the resize but leave the selection defect.

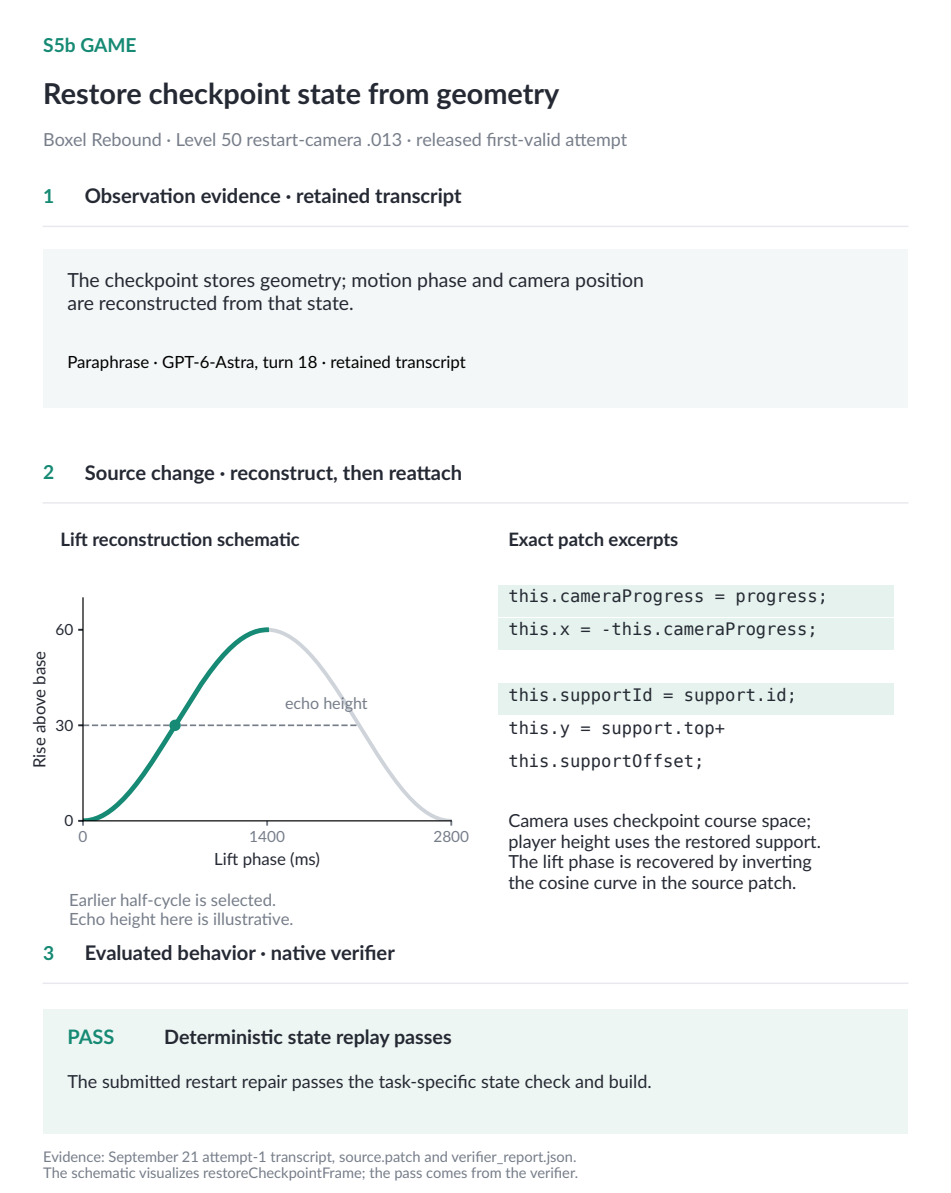

Game case: restore checkpoint state from geometry
State updates jointly restore the scene. The checkpoint stores geometry; the agent reconstructs lift phase from a faded reference frame, restores camera progress in course coordinates, and reattaches the player at its saved height.

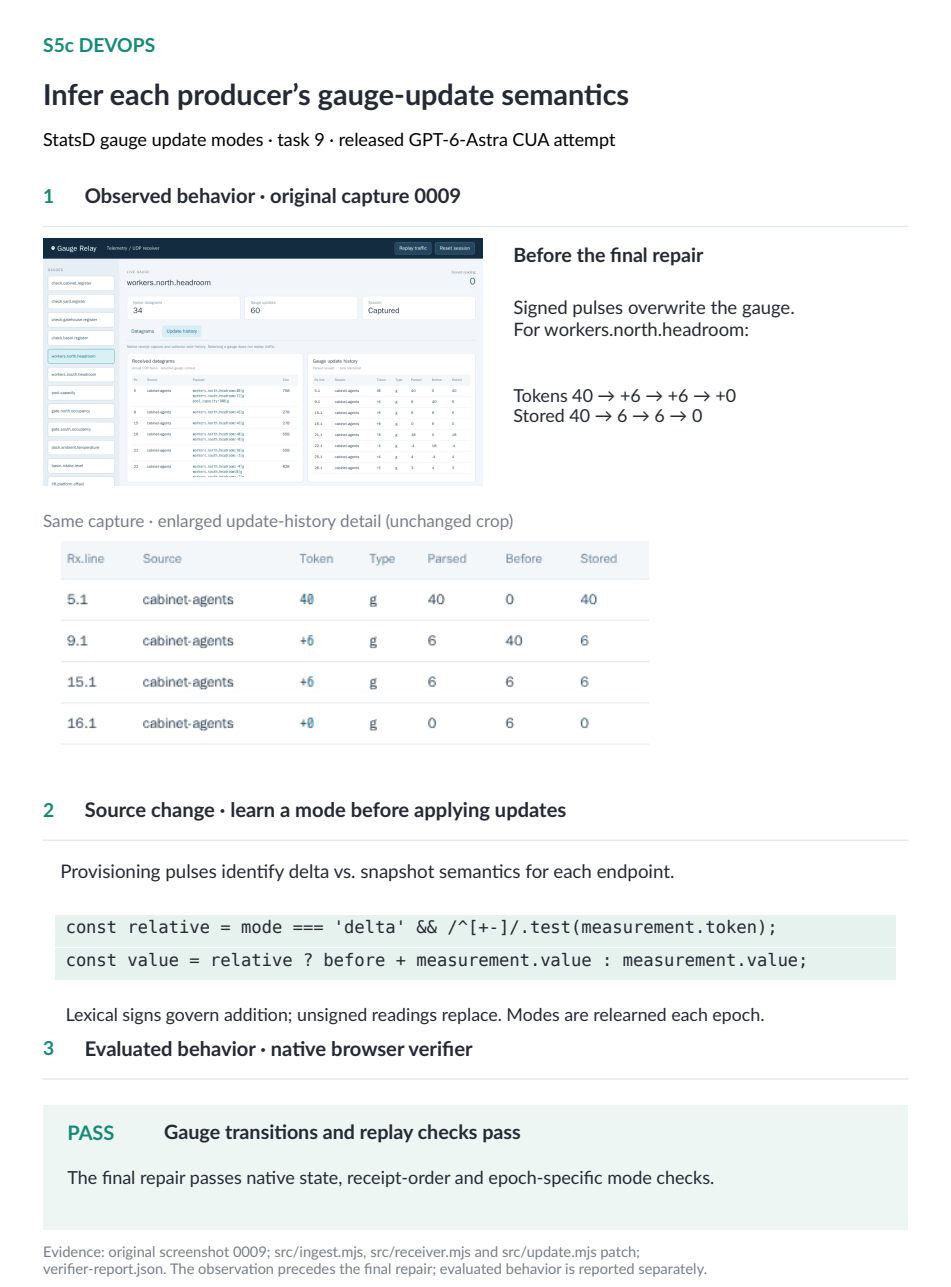

DevOps case: infer each producer's gauge-update semantics
Live behavior identifies the operative contract. A pulse, pulse, settle sequence in the gauge console reveals each endpoint's update mode; the repair relearns the mode at each epoch and preserves receipt order.

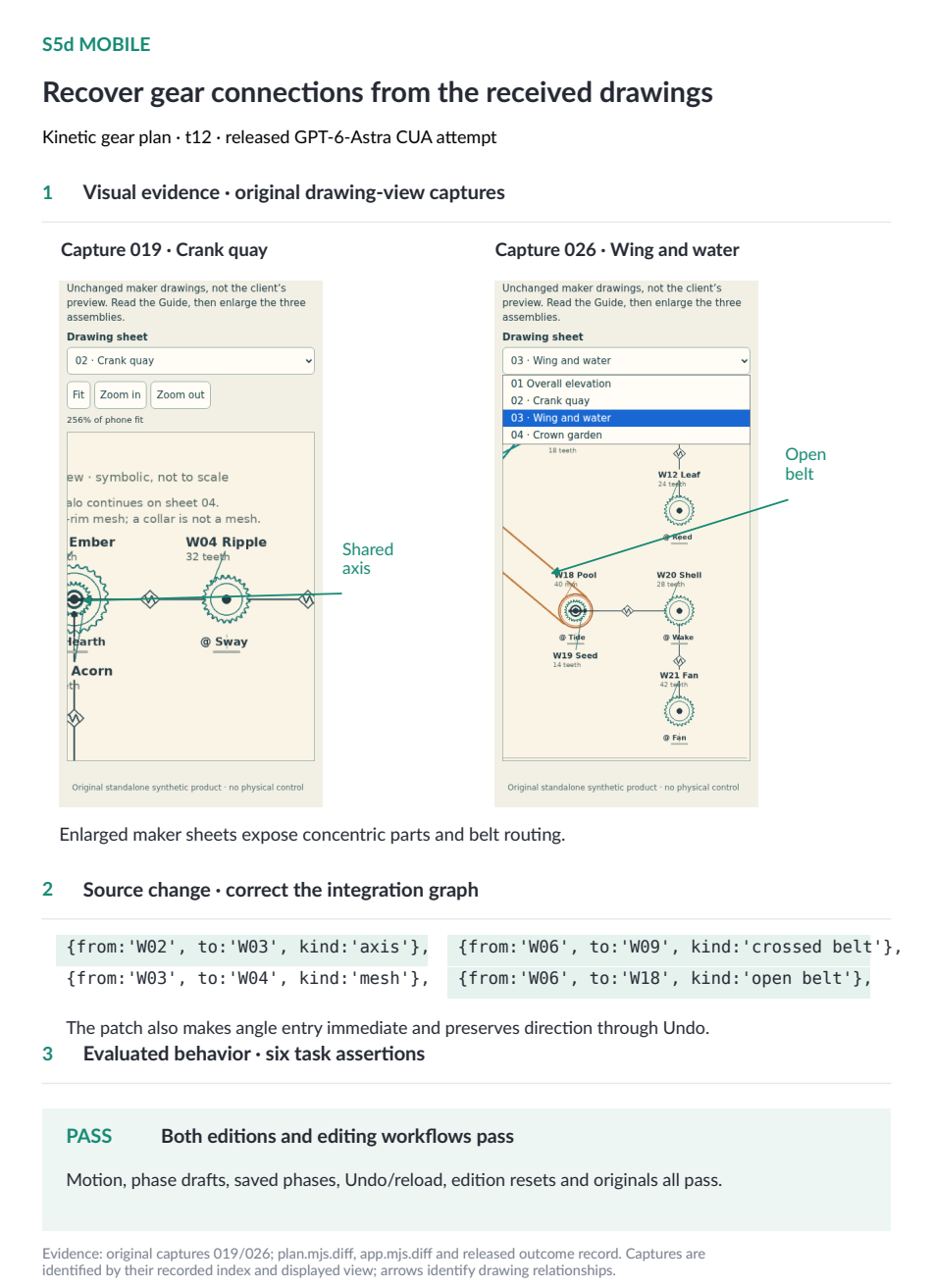

Mobile case: recover gear connections from the received drawings
Relations recovered from drawings. Enlarged maker drawings expose shared axes and belt routing; the agent reconstructs all 23 driving relations and implements their angle, phase and editing behavior. GPT-5.6 Sol chooses the wrong driving rim at two compound assemblies.

Where repairs still fail

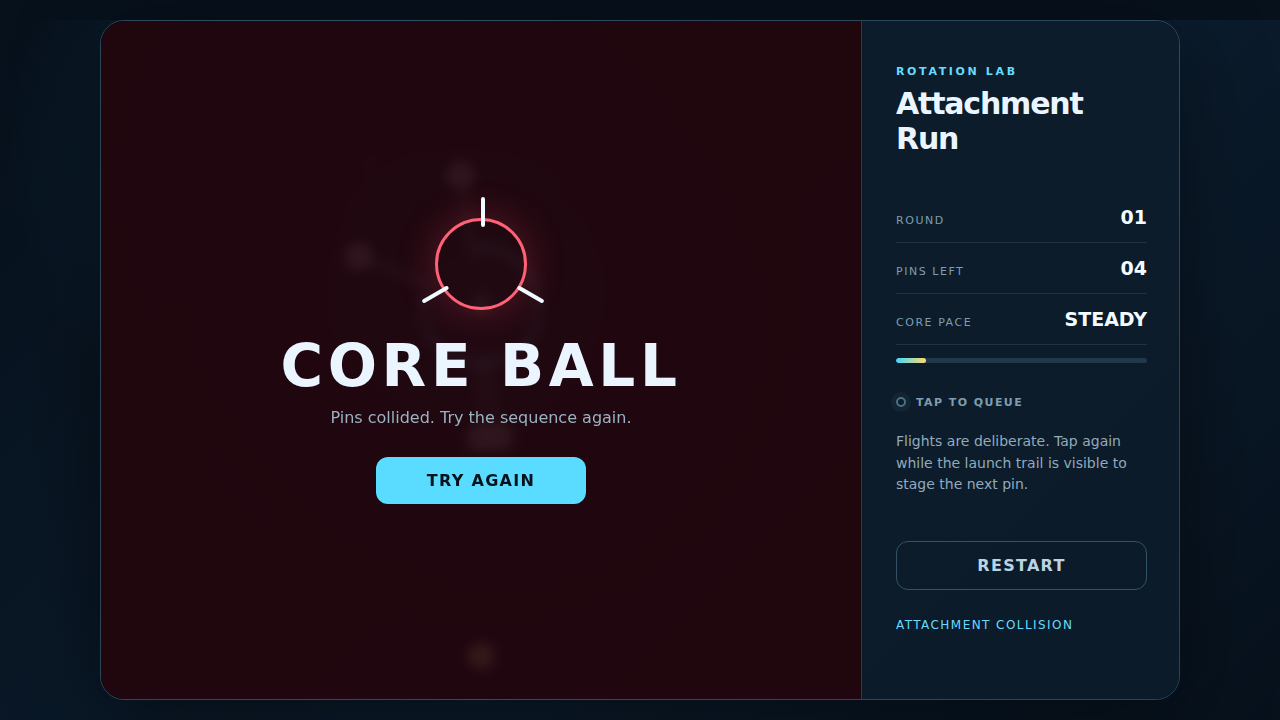

Core Ball's final retained agent screenshot still shows the red collision screen
A local check passes; the repair fails. In Core Ball, the agent's scripted replay completes four attachments and the build passes, but its final browser screenshot still shows a collision. The hidden tests reject the patch: impact is resolved one simulation step late, and a rejected pin still occupies a position. Task ↗

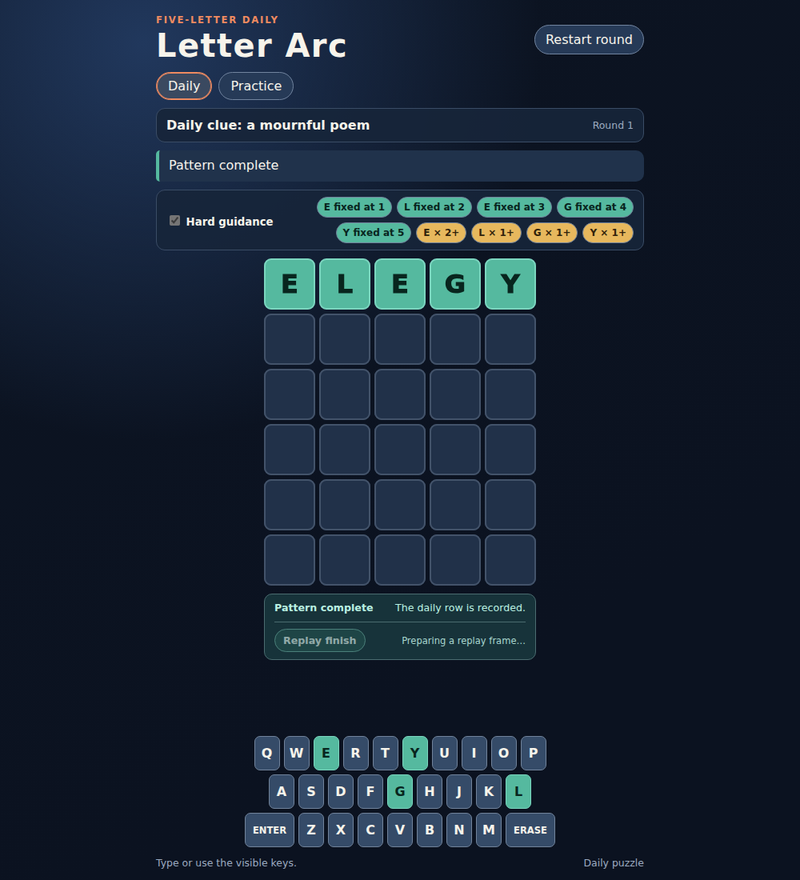

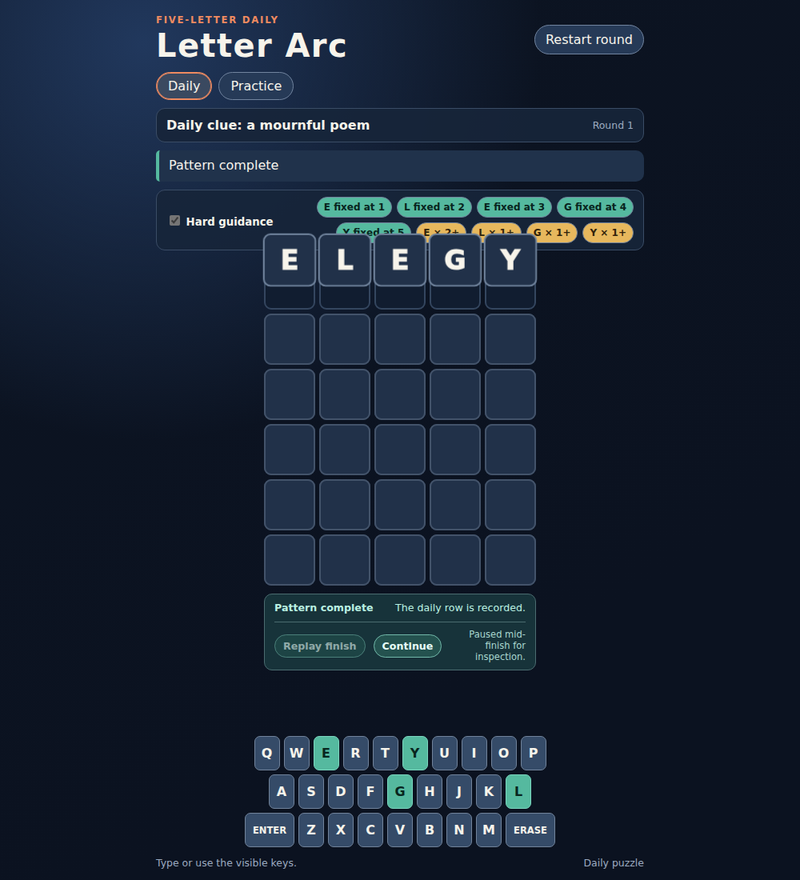

Letter Arc screenshot 17: the revealed ELEGY rowLetter Arc screenshot 18: revealed tile faces turn dark mid-animation
Replay reveals the next defect. In Letter Arc, an initial CSS edit exposes a second bug: revealed tiles turn dark mid-animation. Only further edits that separate the animation layers pass all 24 browser checkpoints. Task ↗

Evaluation

What counts as a success

CheckQuestionHow it is decided
Task checkDoes the requested behavior work?Tests execute the rebuilt application under controlled interaction sequences and assert on the rendered interface, runtime behavior or internal application state.
Regression checkDoes designated existing behavior still work?The same tests cover the functionality the task says must be preserved, so a fix that breaks normal play, editing or navigation fails.
Permitted-change checkDid the patch stay inside the allowed scope?Edits outside the files the task permits fail regardless of test results.

These three checks give patch correctness. Reported task success additionally requires a valid trajectory: the run used only the interfaces allowed by its condition and, for Hybrid runs, actually observed the screenshots. Correctness depends on the behavior of the submitted program, not on matching the reference patch; the evaluator may inspect privileged state such as a game board that the agent only sees rendered.

How tasks are built and validated

Each task starts from a software behavior that can be reproduced in the running application and modified in the codebase. An LLM author constructs the instruction, initial codebase, runtime setup, gold reference repair, plausible negative repairs and protected tests; human review checks that the requirement is meaningful and that the relevant runtime evidence is observable through the benchmark interface. The verifier must reject the broken project and every negative repair and accept the gold repair; the figure below shows this for one task. Reviewed construction-time agent trials then guide neighboring variants that extend each task family's difficulty range.

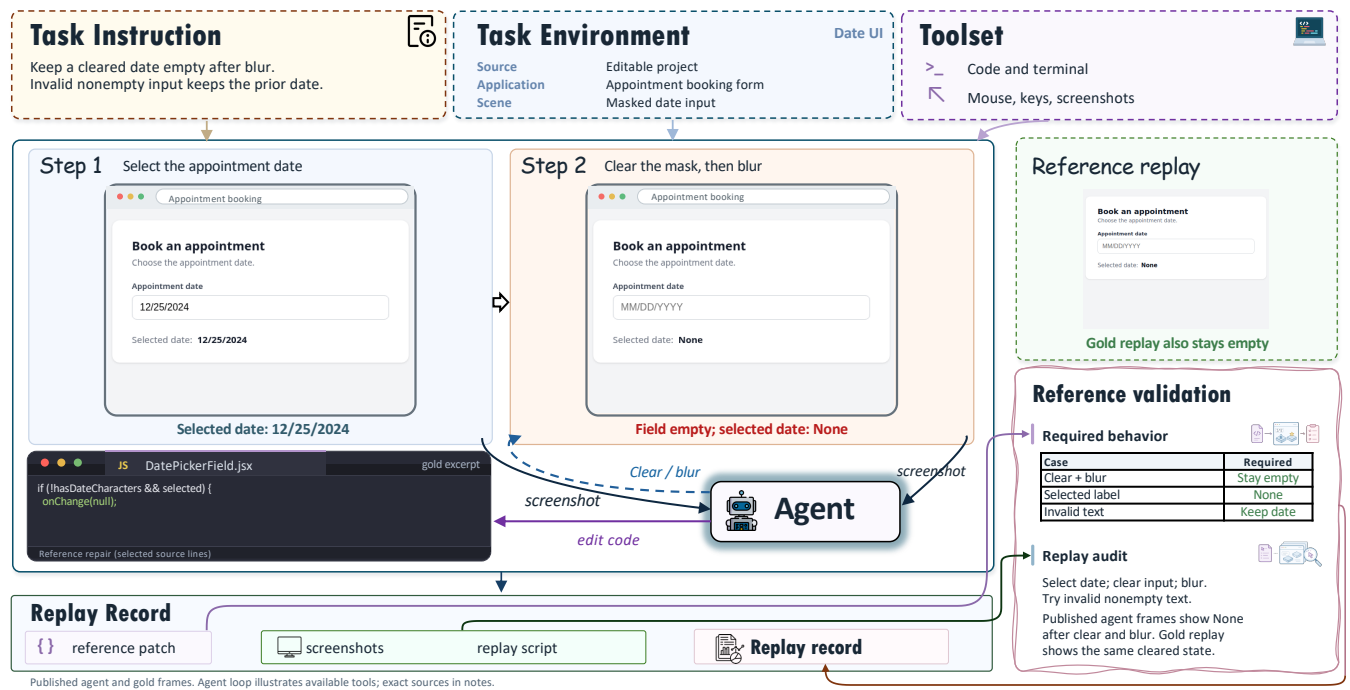

Web example: preserving distinct masked-date input behaviors, with the reference replay, the required-behavior table and the replay audit
Validation of one task. The masked-date input must stay empty after clearing and blurring, report no selected date, and keep the previous date on invalid text. The reference replay shows the gold repair meeting all three requirements; the required-behavior table is what the verifier checks, and the replay audit confirms the behavior is observable through the benchmark interface. A negative repair that clears the selection in both cases fails. Figure 5 in the paper.

Citation

BIBTEX
@misc{wang2026cuaswe,
  title         = {CUA-SWE: When Computer-Use Agents Meet Visual Software Engineering},
  author        = {Wang, Prince Zizhuang and Liang, Chenhao and Xu, Zelong and Yuan, Aojie and Zhou, Xiaolin and Zhang, Haiyue and Zhao, Yue and Hu, Xiyang and Jiang, Shuli},
  year          = {2026},
  eprint        = {2609.32600},
  archivePrefix = {arXiv},
  url           = {https://arxiv.org/abs/2609.32600}
}
